blender003_icing and the dough



GGG' day!

to review the previous chapter, I did quick dough making,
and it only took a few seconds to finish making it.
always, practicing continuously everyday work!

Blender Beginner Tutorial Part 3: Modifiers

today we are going to put the icing on top of the dough!

icing and the dough

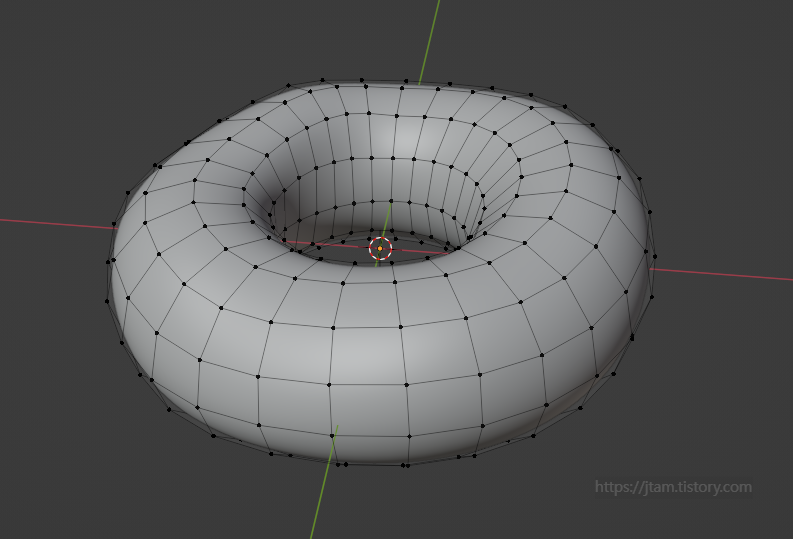

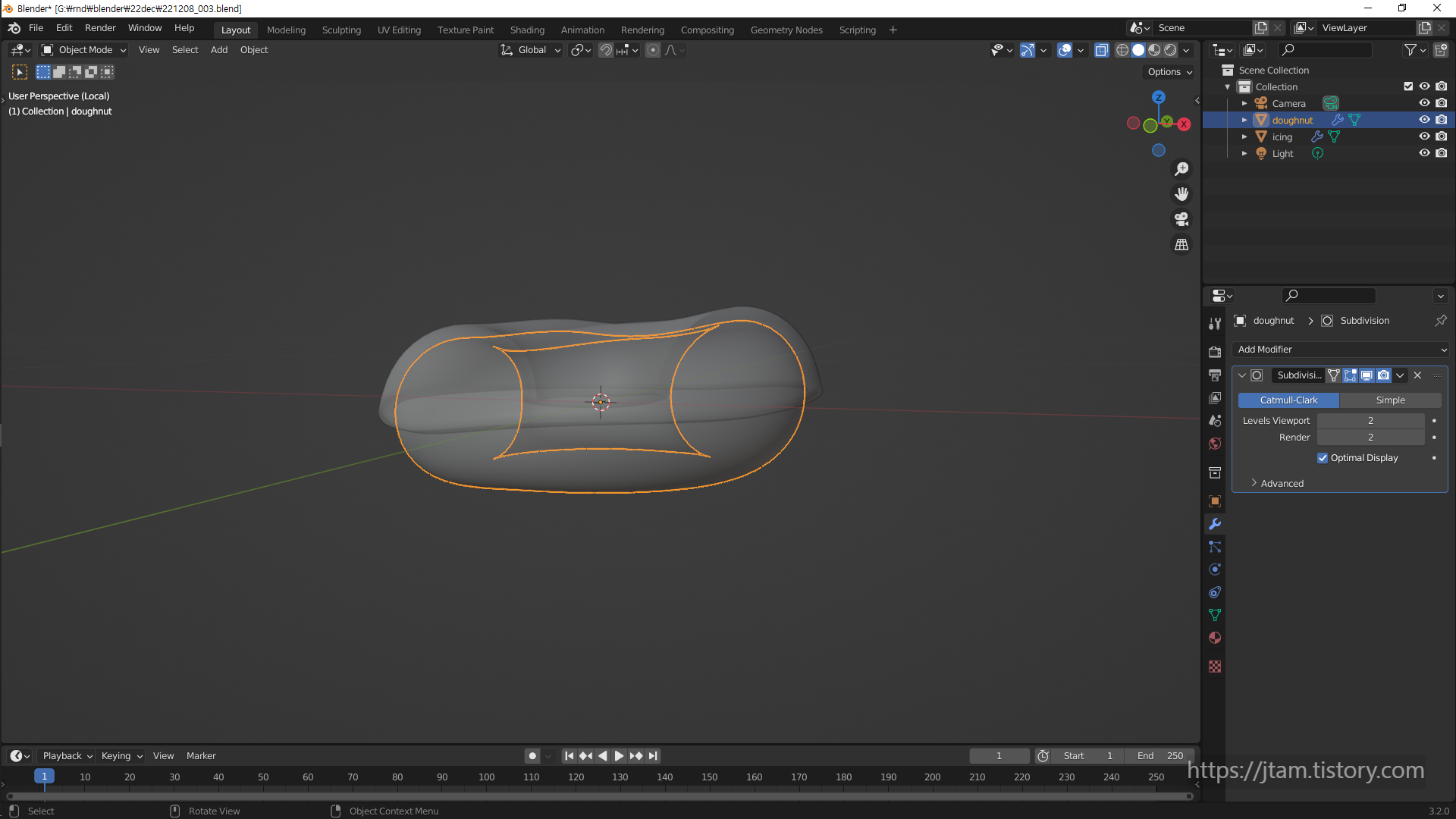

my 3rd version of doughnut dough!



numpad 1 or 3 ; to view the straight on x / -y
직각 뷰

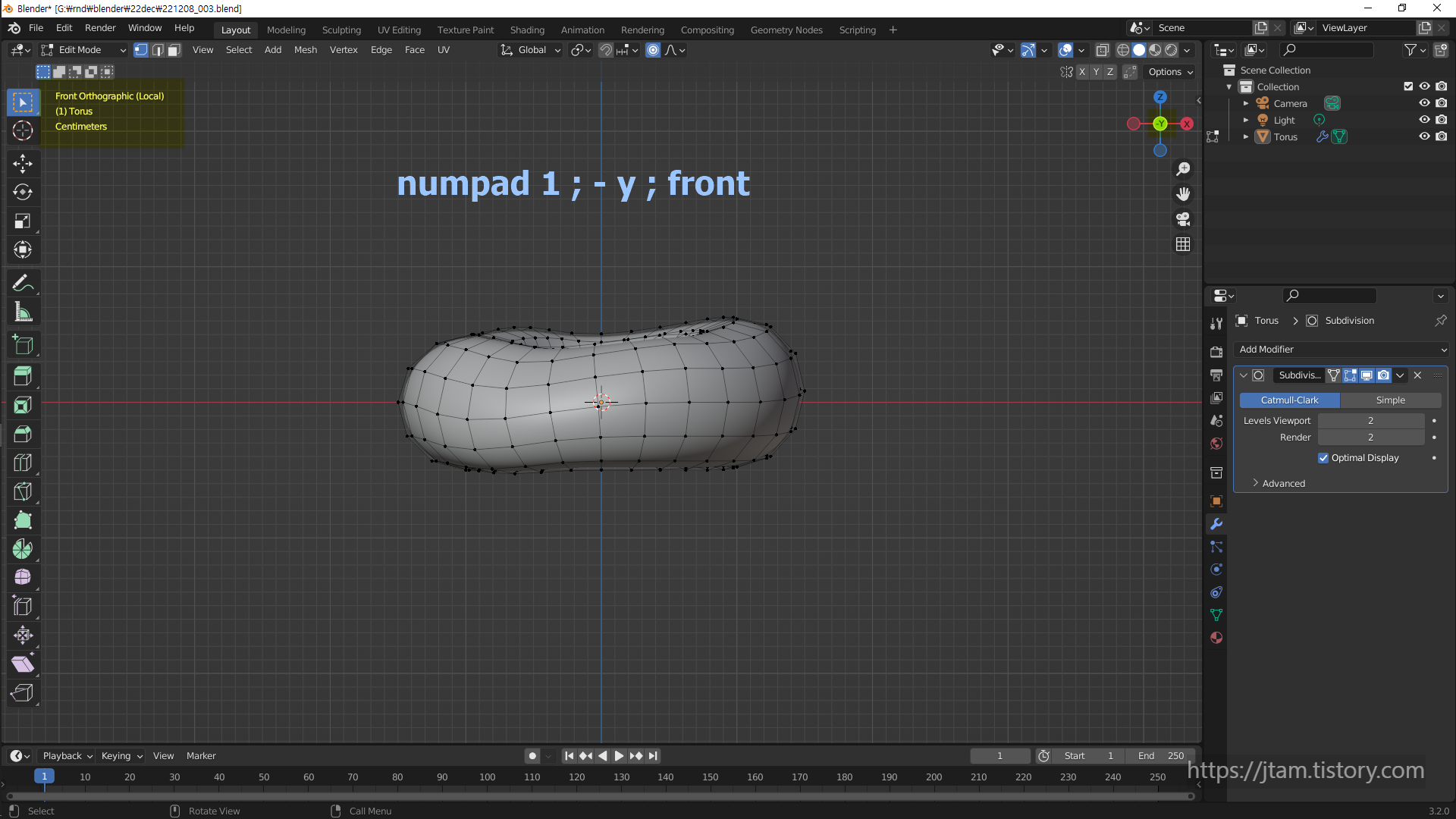

numpad 1 ; -y ; front orthographic

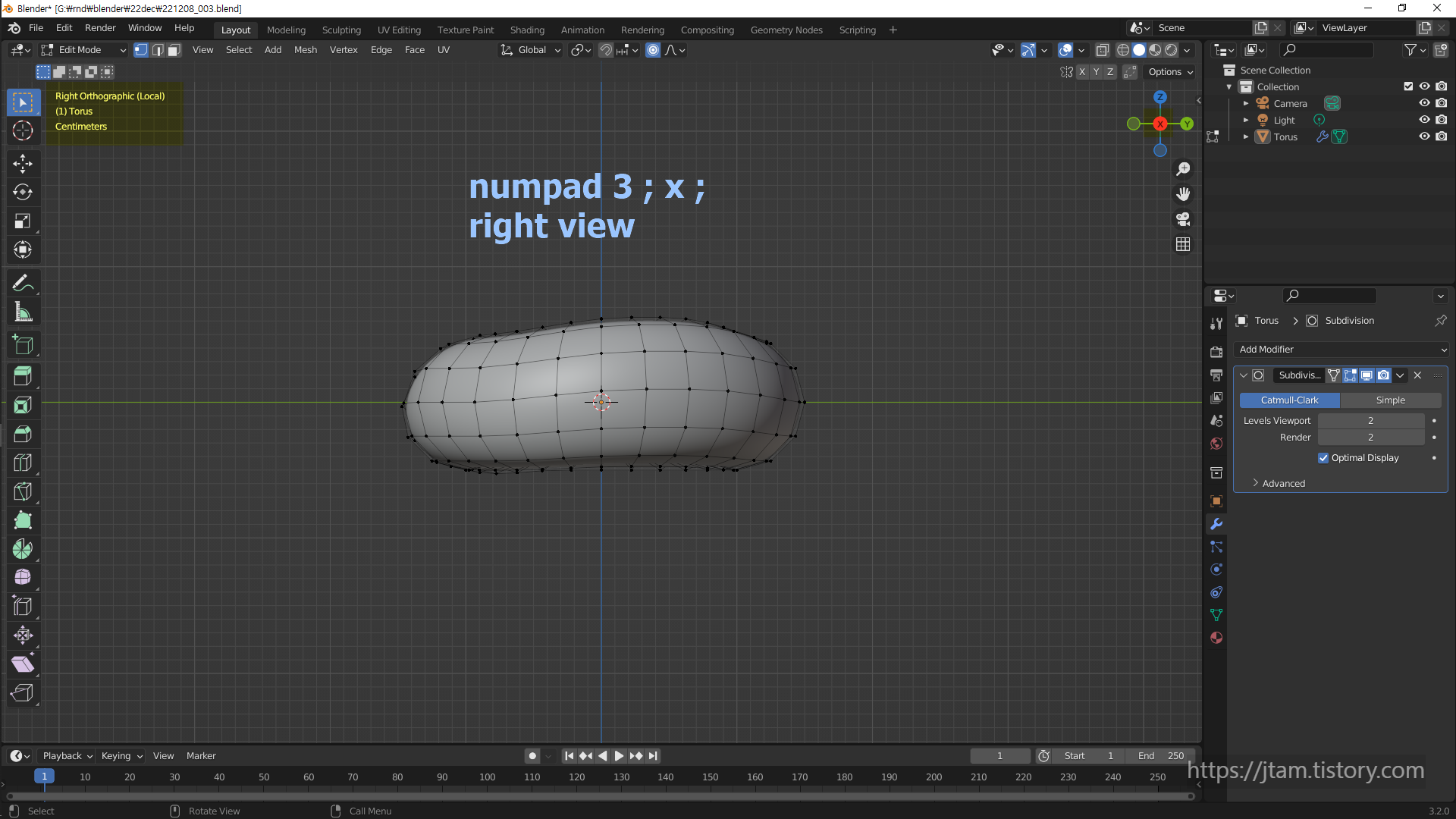

numpad 3 ; x ; right orthographic

orthographic; is like.. there are no perspectives.

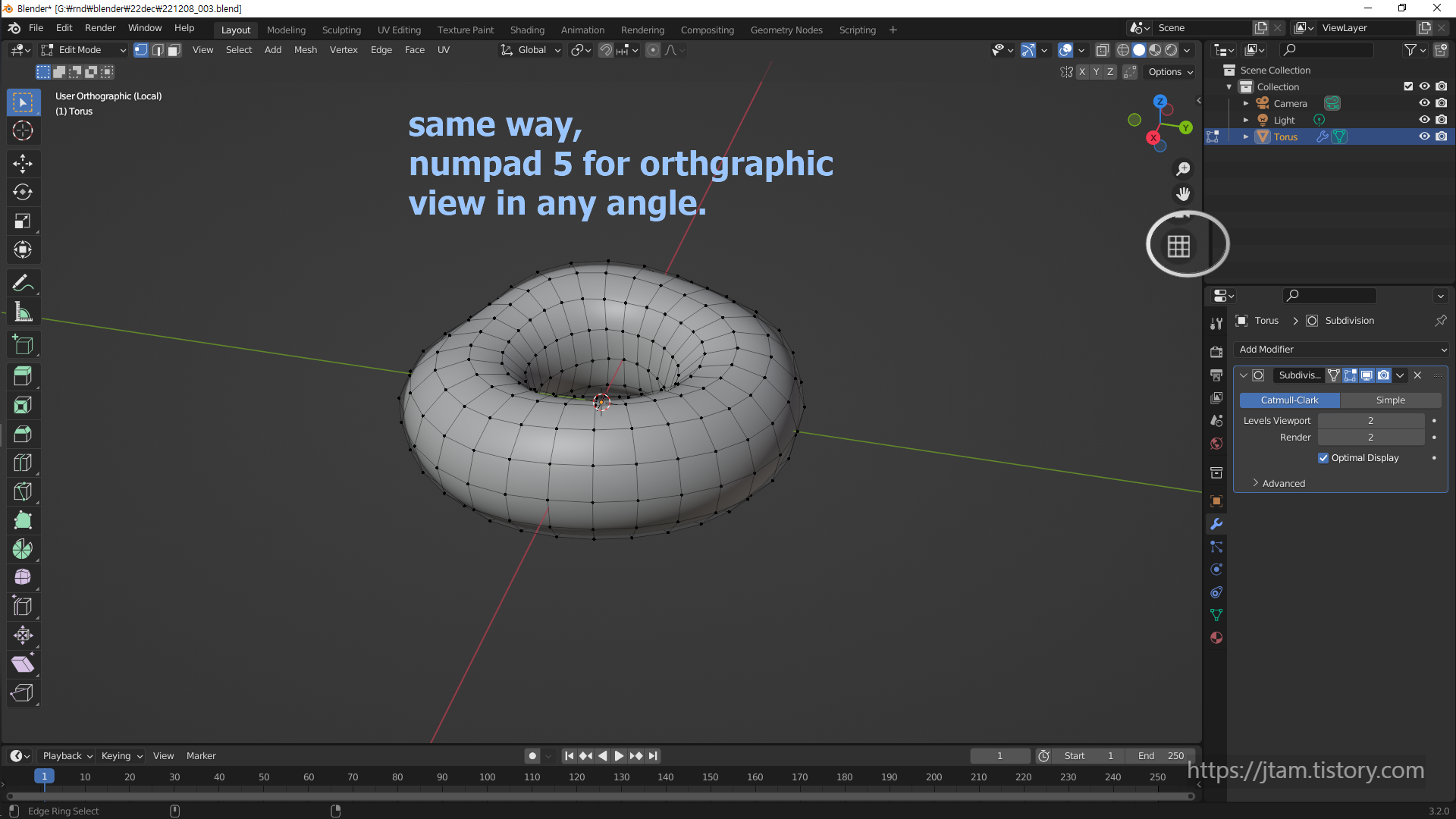

Numpad 5 for orthographic view at any angle.

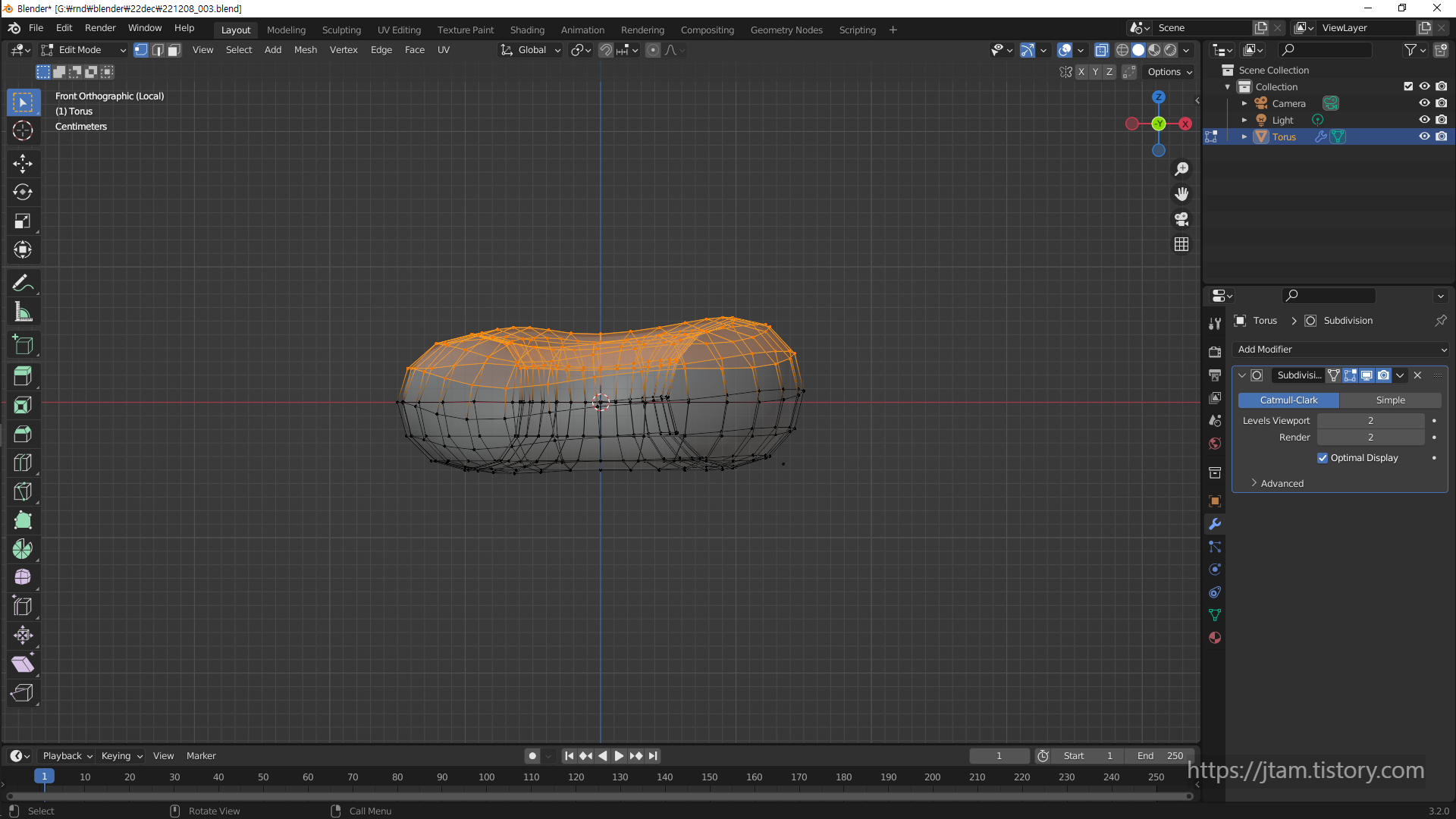

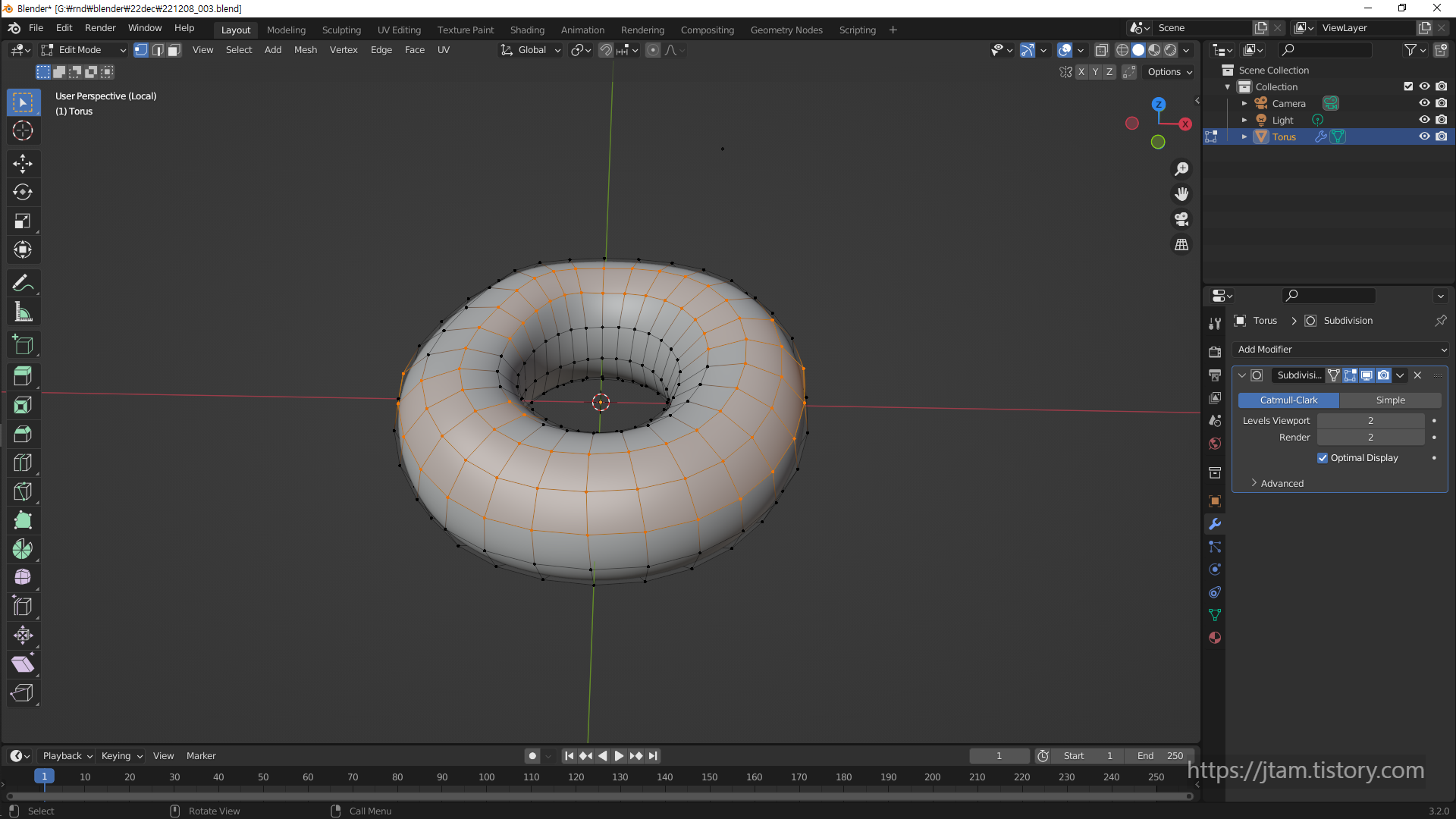

if you drag with the orthographic view



only part of the vertices will be selected

so hit the

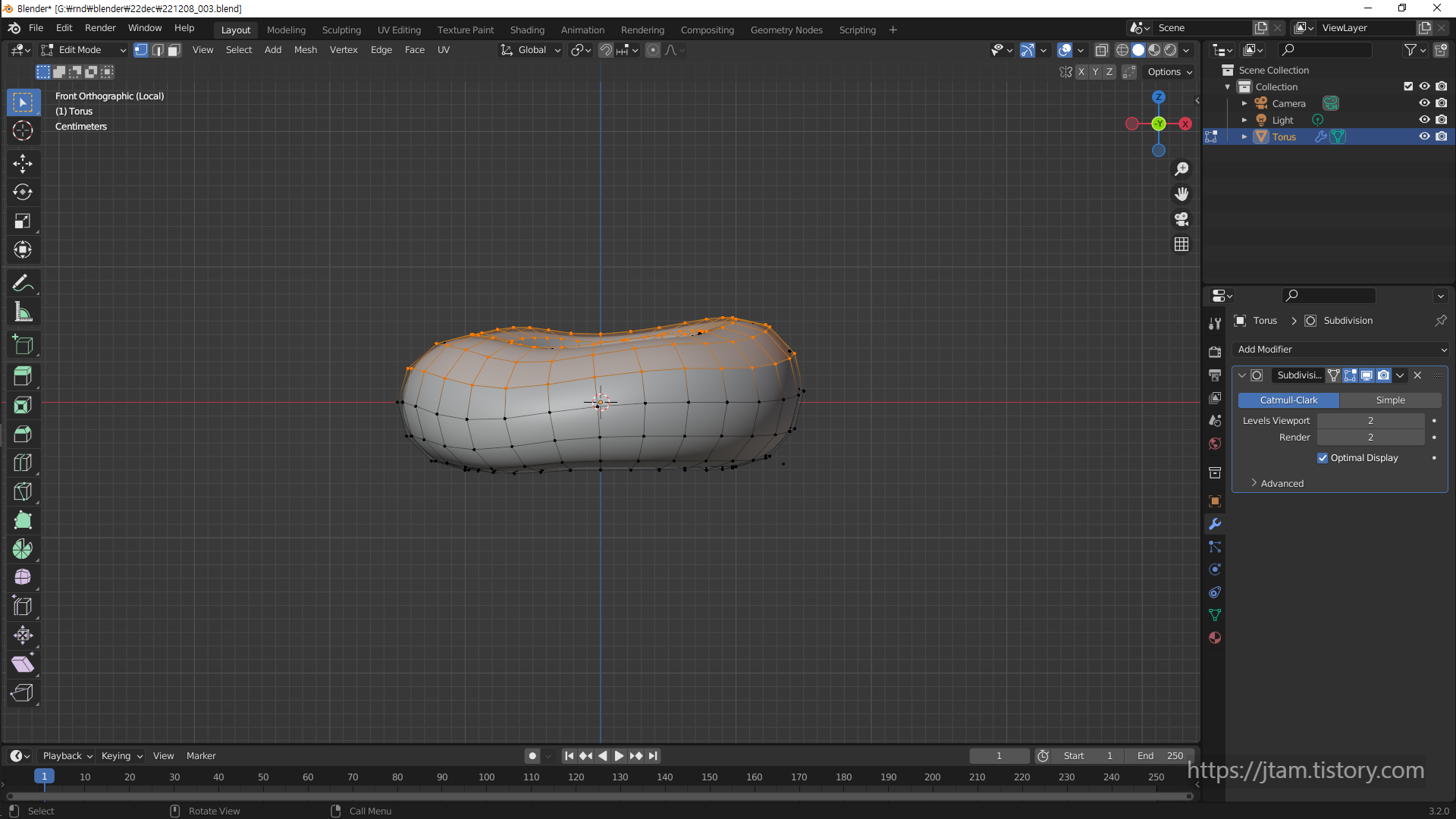

alt + x; for the toggle view

and select the vertices.
for multiple selections do shift the key while dragging.

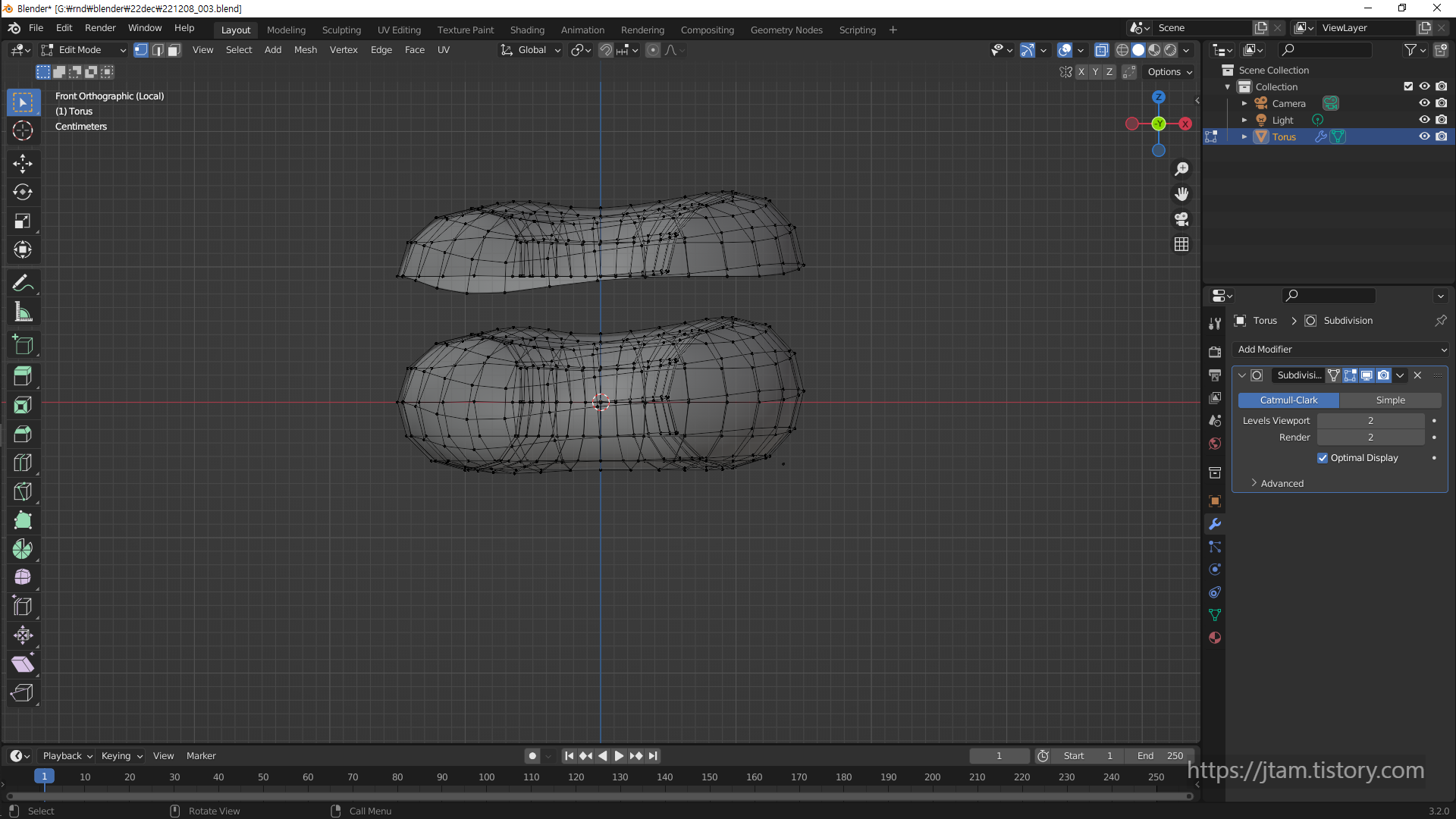

shift d ; for duplicate





shift p > for separate selection

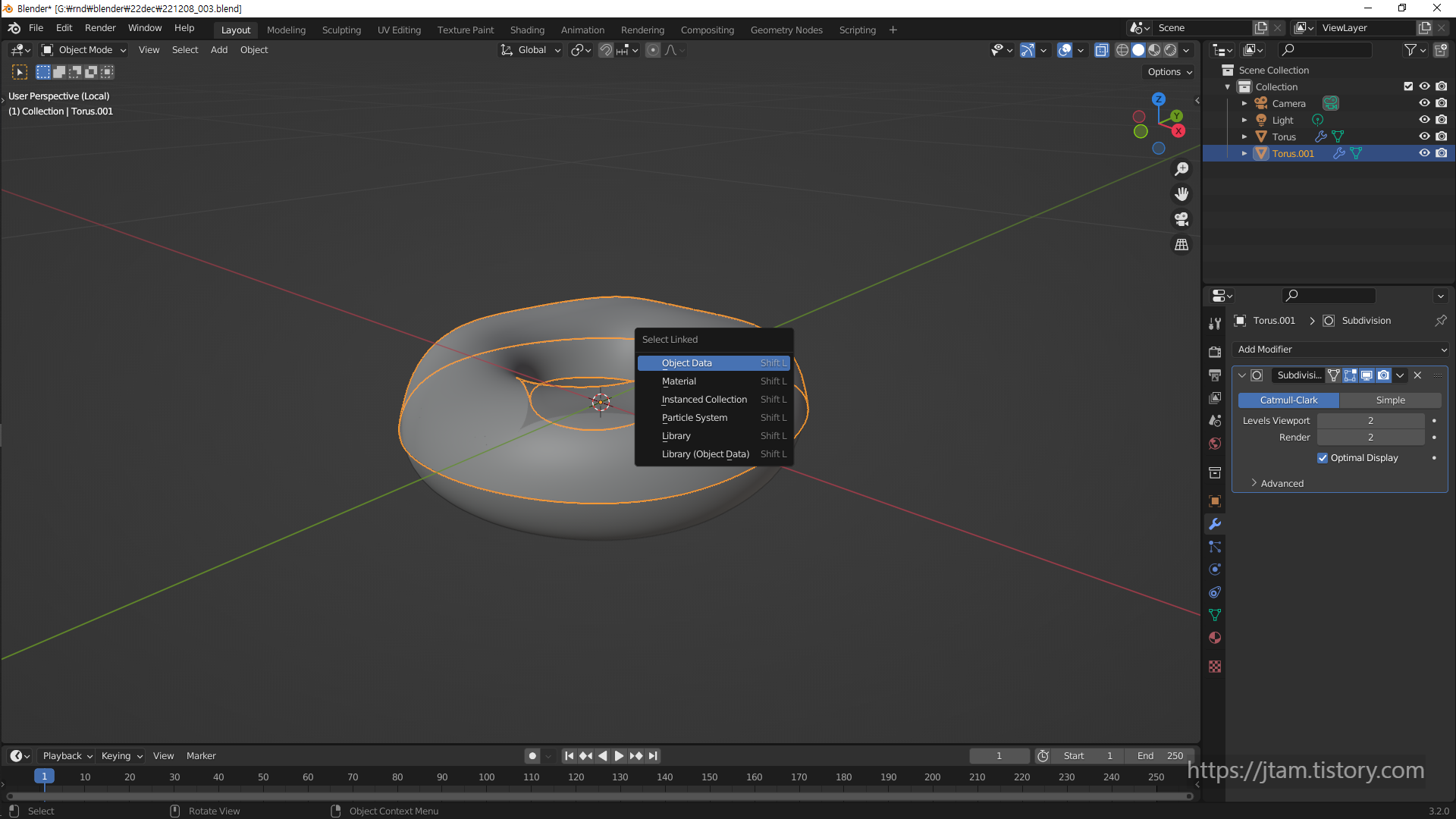

if you missed the duplicate object

click shift L / or just L
to find the linked object.

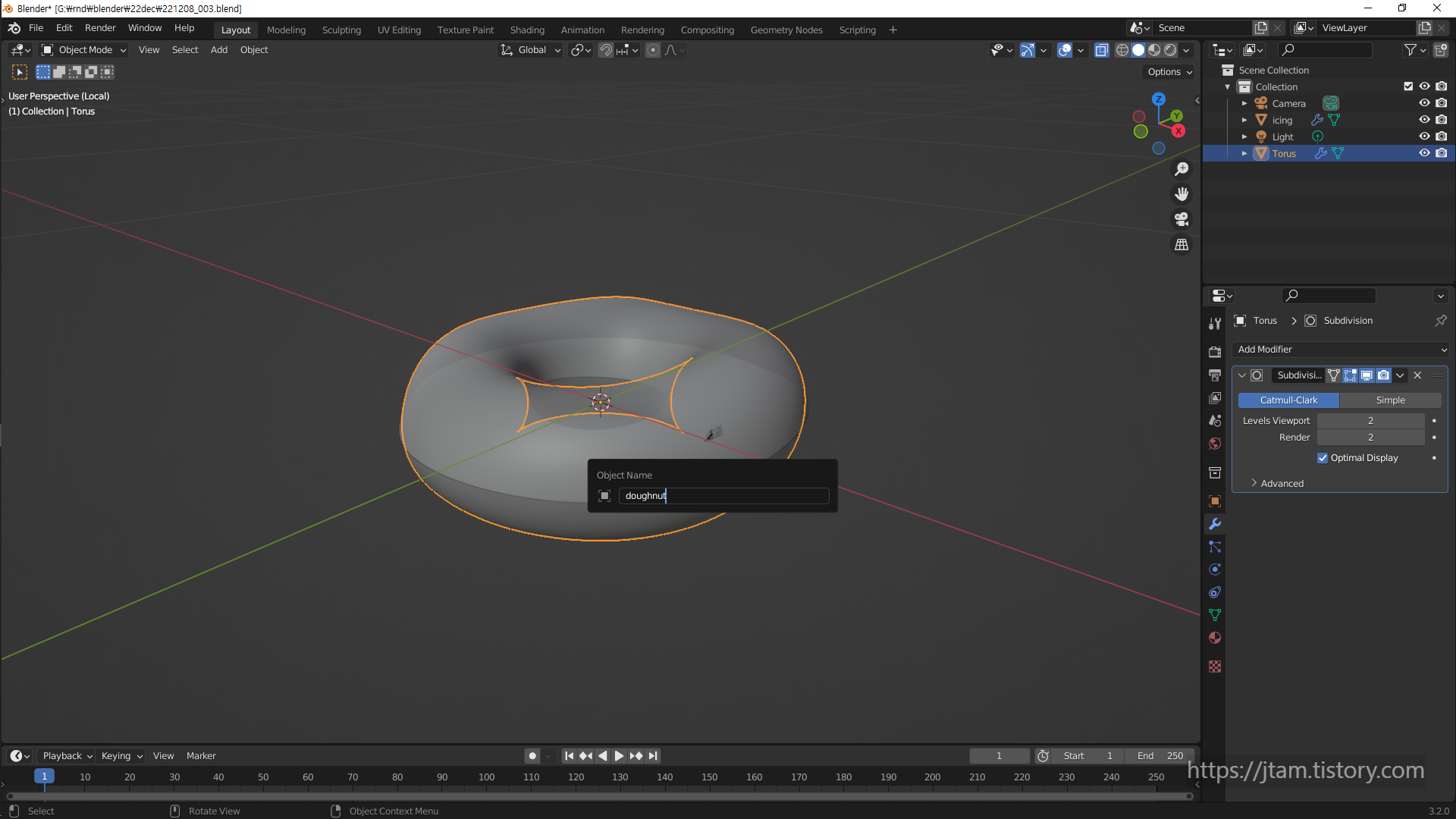

double click the name to rename it

or F2 for the hotkey

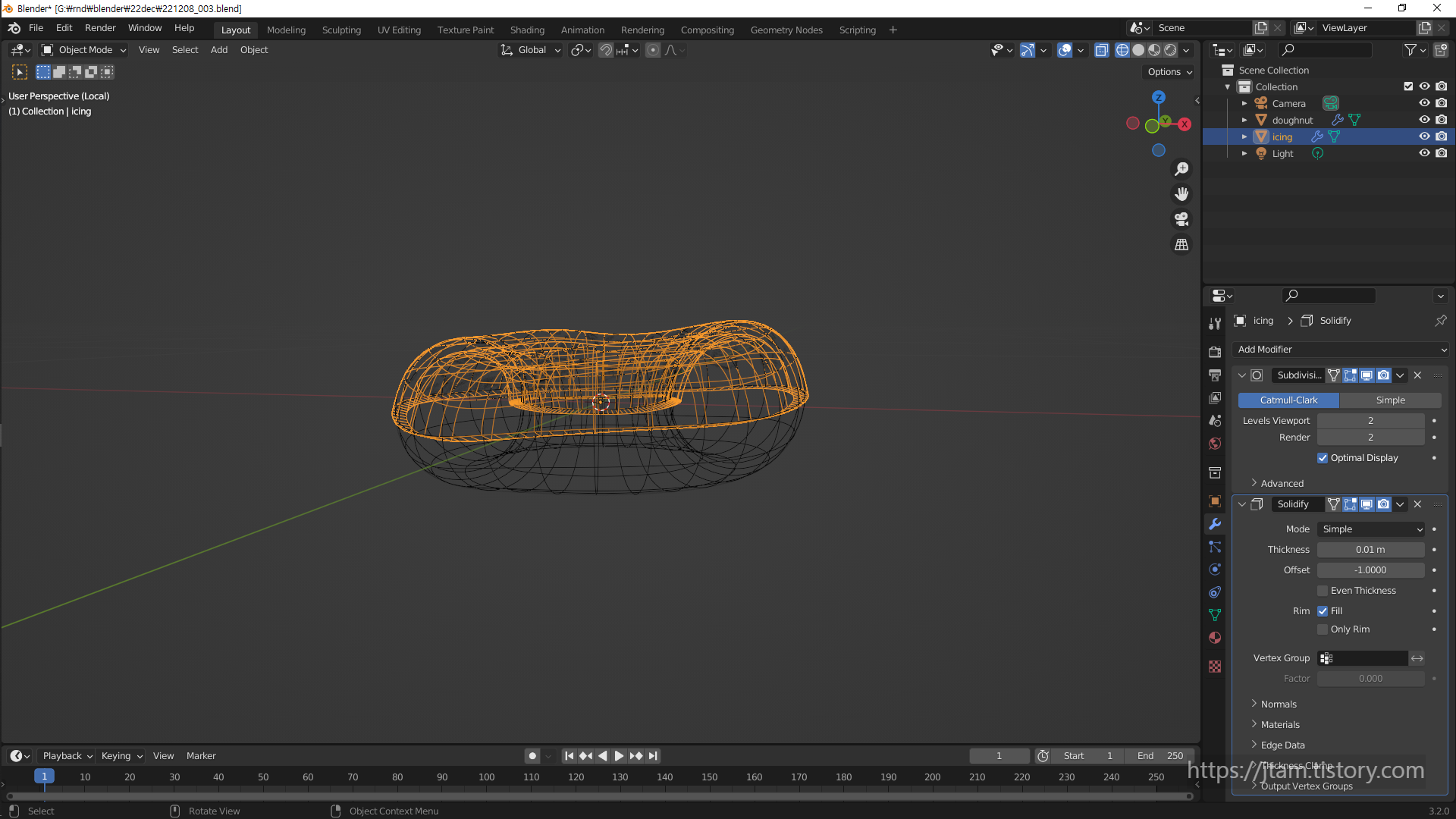

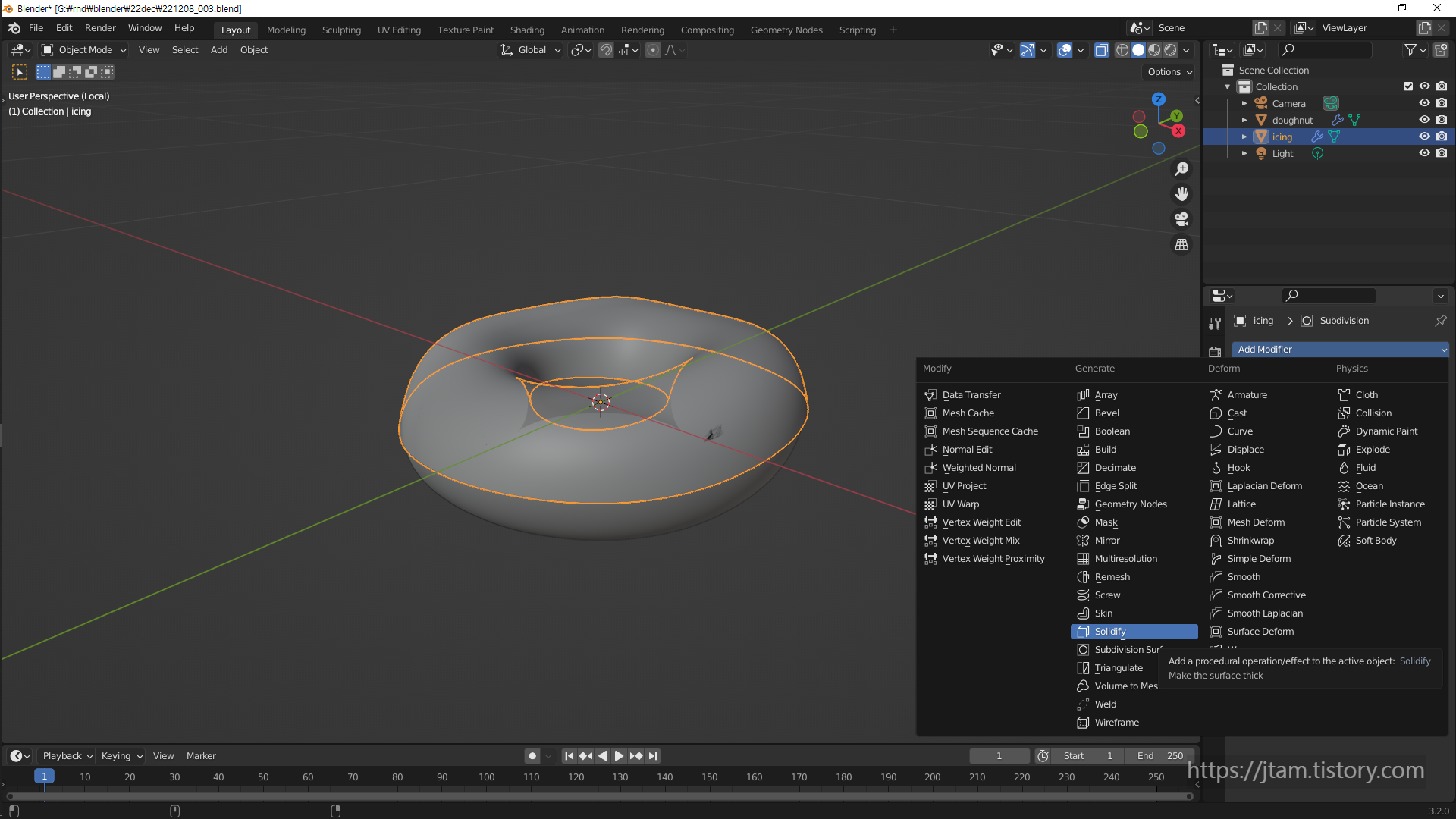

solidify

solidify the cover part ; the icing

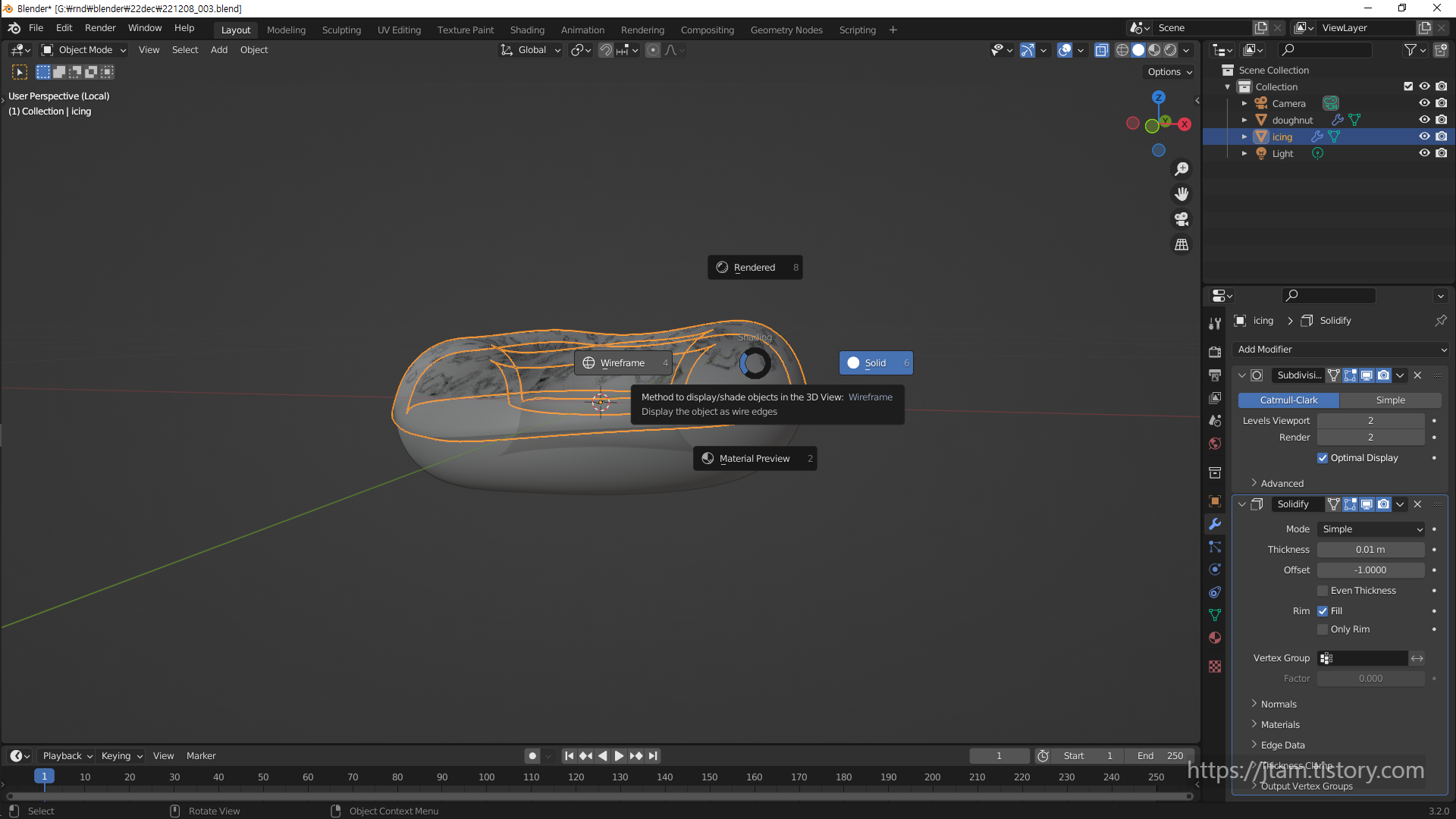

z > wireframe mode



solidify mode

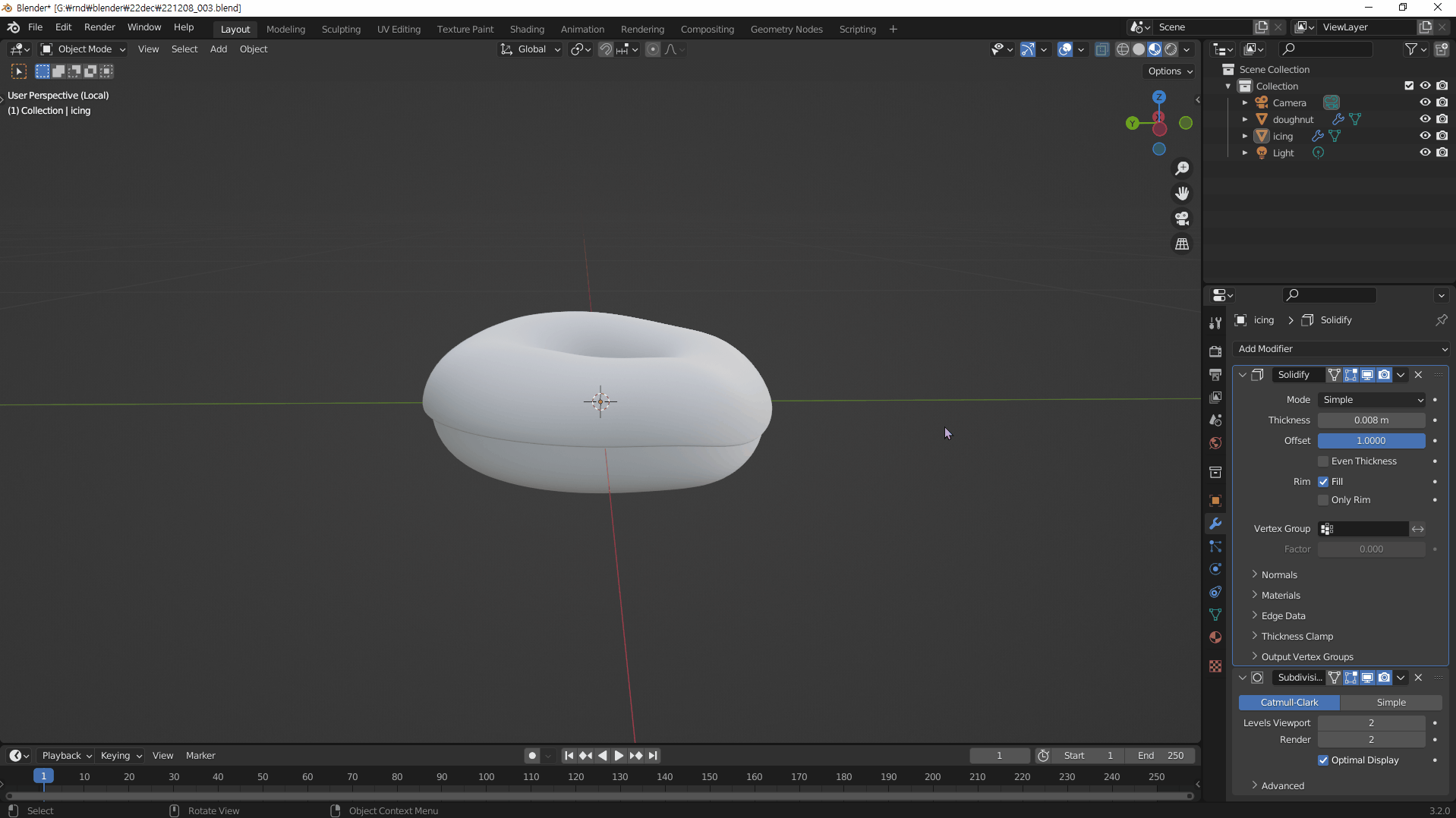

change offset from -1 to 1

you can tell the size difference.

while changing the number by dragging it

it changes too rapidly

so hold shift while dragging it will subtle the changes...

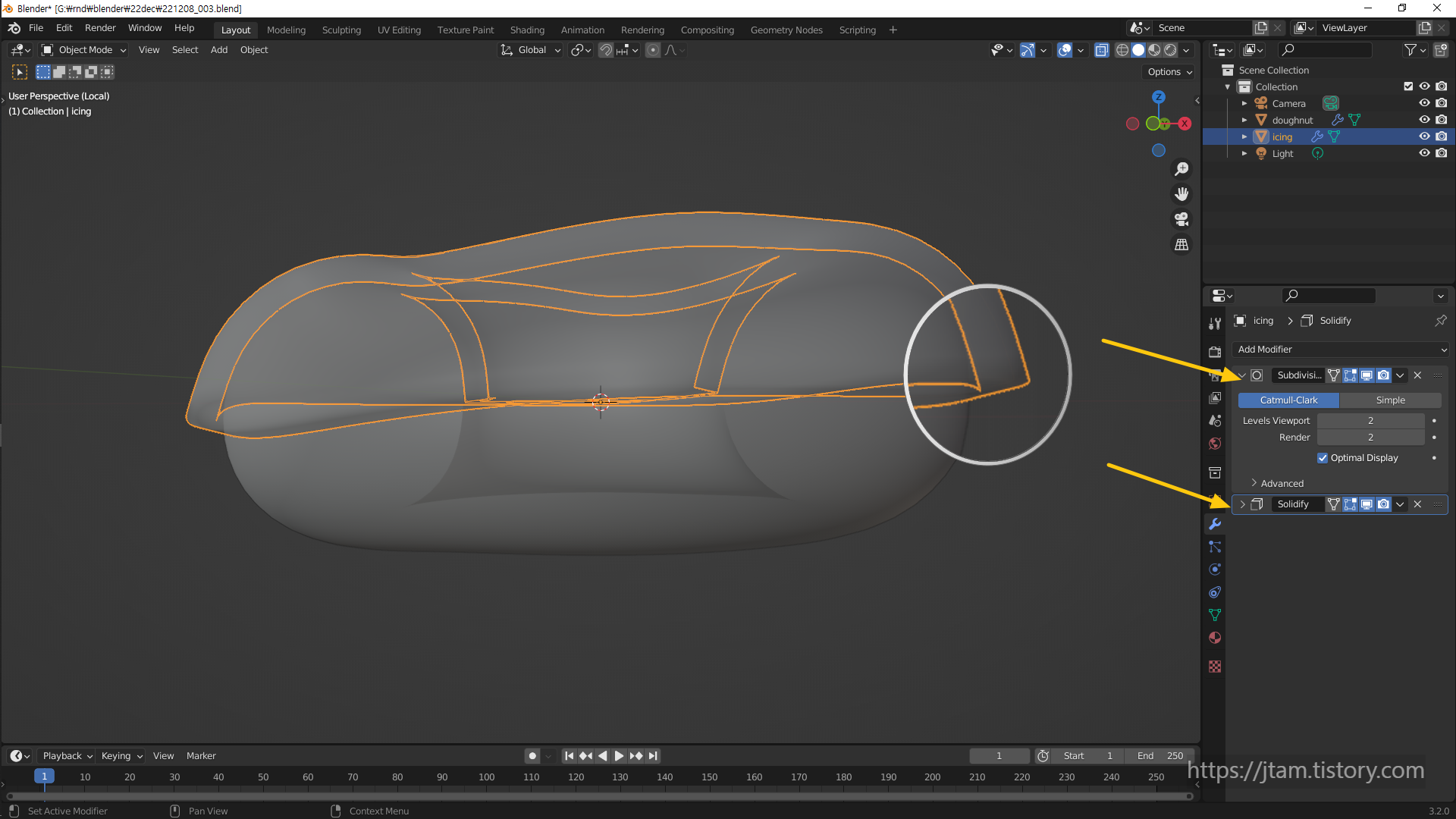

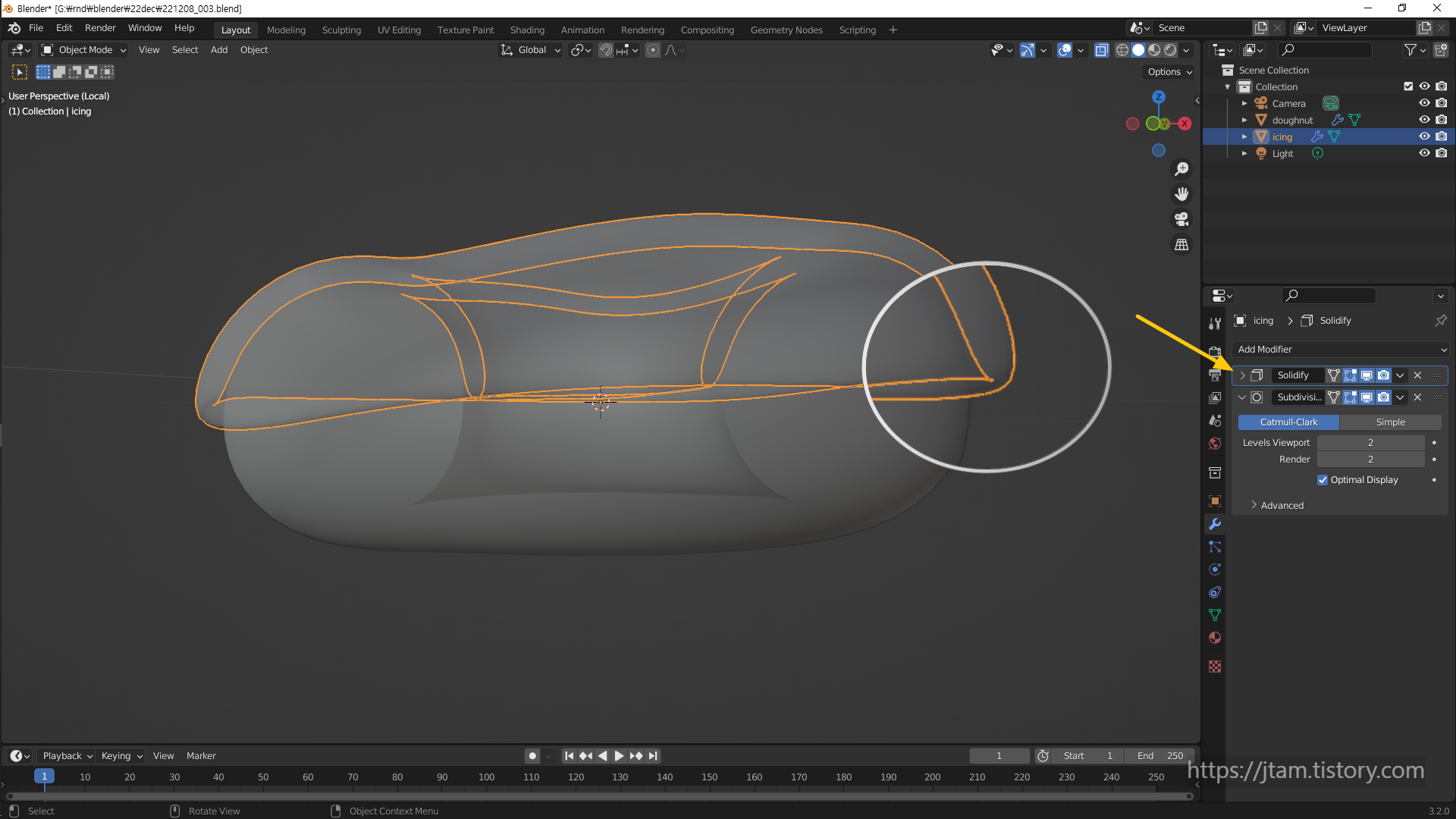

by changing the order of effect you can smooth the edge like this.

if the solidify is under it the angle is too rough.

but if you put the solidify on the top

you can see the angle got smooth.

because subdivision smooths out the angles..

so it's like the order of effect changes things..

icing and the dough

my file :

221208_003.blend

0.87MB
