ggg' day again!
today is my 7th-day using a blender,
spent 2 days for review, and 5 days learning more.

Time passes so fast, 2022 is almost over.
Wish I can achieve some goals I've made this season.
which is,,, learn how to make doughnuts with a blender.

Blender is so much a lot like myself tool.
It changes and develops things rapidly, open source, very adaptable in many fields
but yet not used enough in my home country butta
I want to see further, and I bet my choice is right.

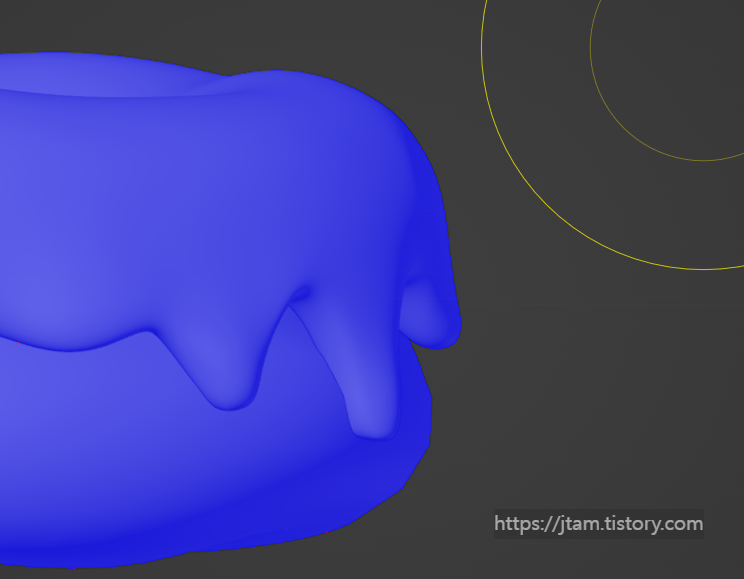

today we are learning how to sculpt.

"use the brush tool to move the vertices."

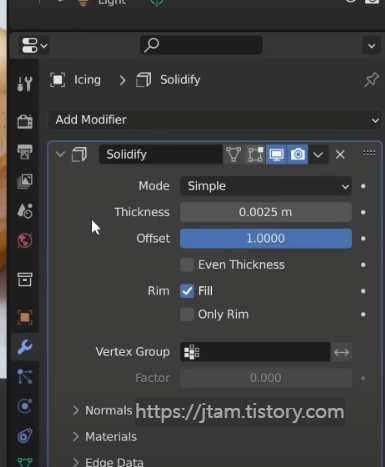

1. icing ; modifer ; hit ctrl a to apply the effects
- solidify
- and subdivision ( change levels viewport to 1)
bc, render value won't be applied in any way.
적용할 때 위에서 아래 순서대로!!!!
apply them in order from top to bottom!!!!


1= this will double the number of vertices.

2. ADD ' subdivision surface' again and hit apply
to make little droplets that sort of bulge out,
we need more vertices!

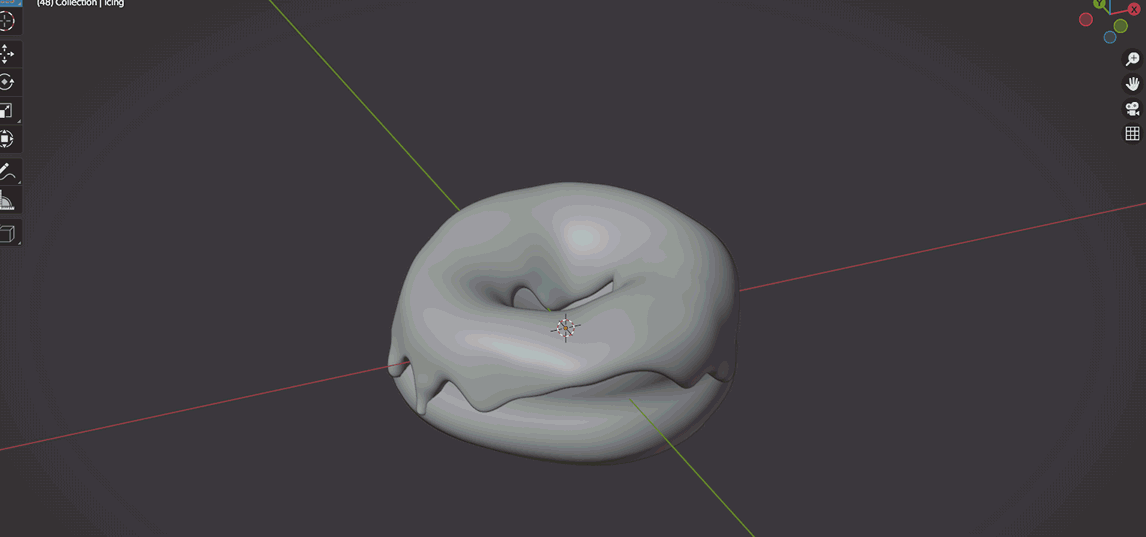

3. move to sculpt mode
or
ctrl tab; to change the mode

지브러쉬처럼 스컯팅 하는 것.

draw / pull out towards you
ctrl + draw / reverse the draw, and digging in to it.
grab;g / grab
change brush on the top


4. sculpting mode ; right click

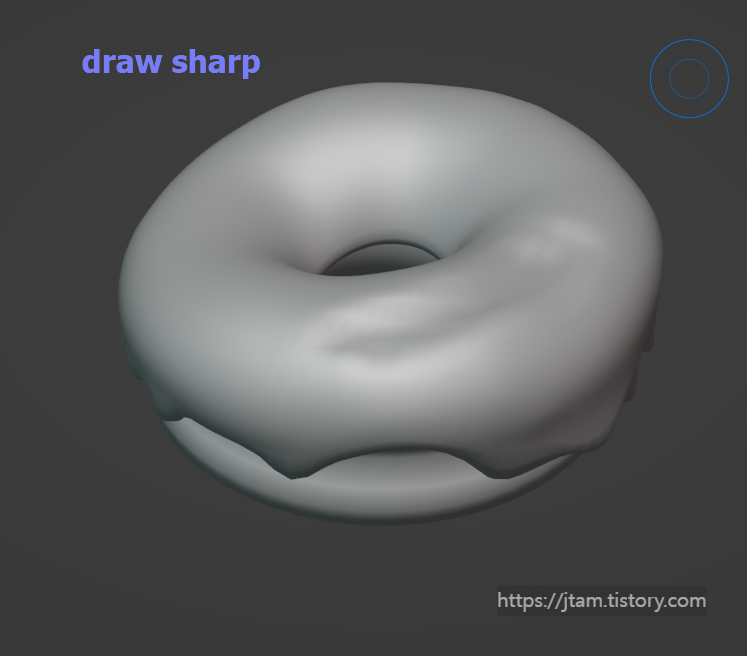

sculpting draw; x / draw sharp / clay

shift spacebar 누르면 shortcut bar 나와서 고르면 됨.
하나씩 눌러서 직접 테스트.

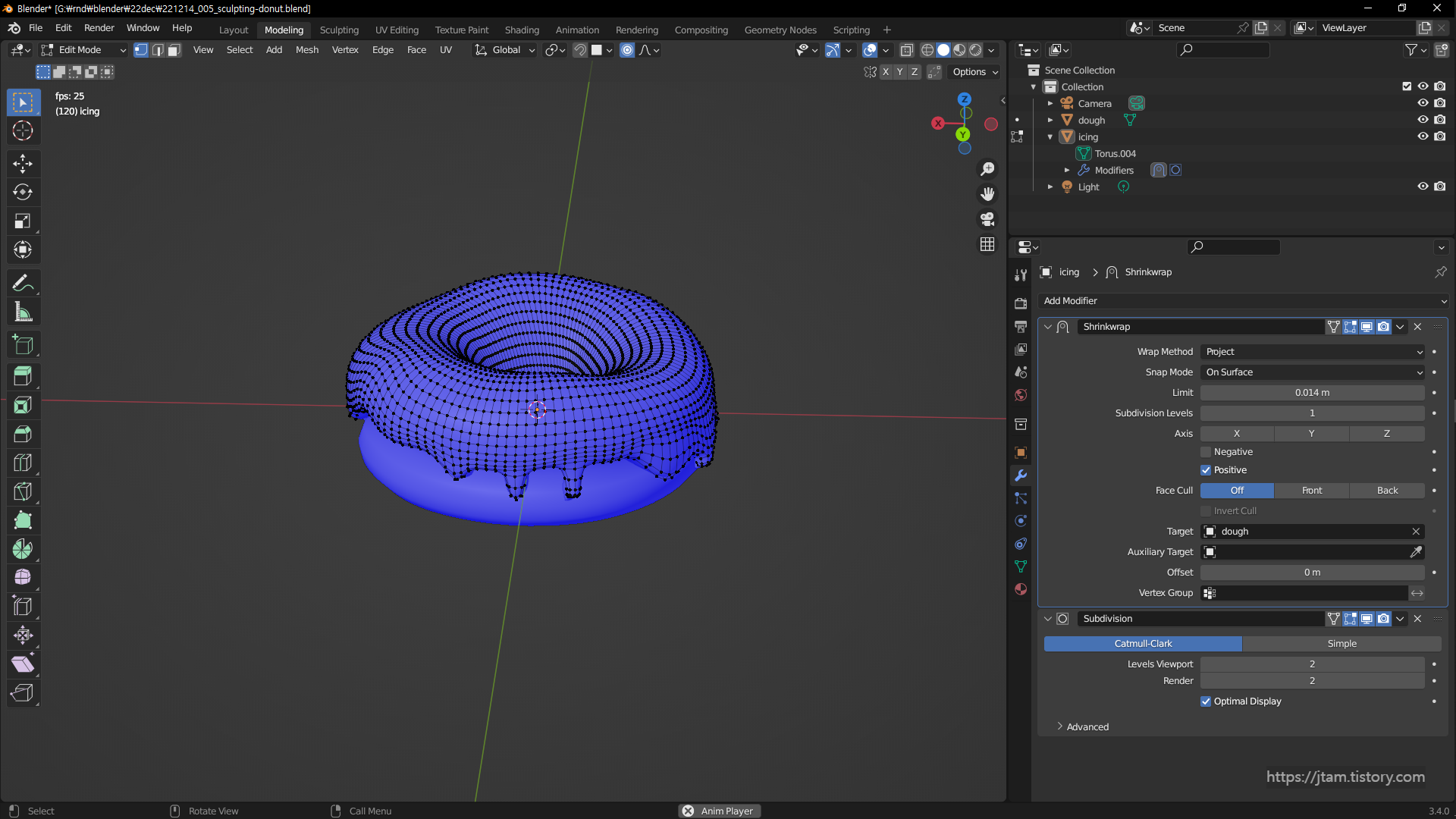

5. shrnik warp 가 안들어가 있어서 적용하는데 깨짐 발생!

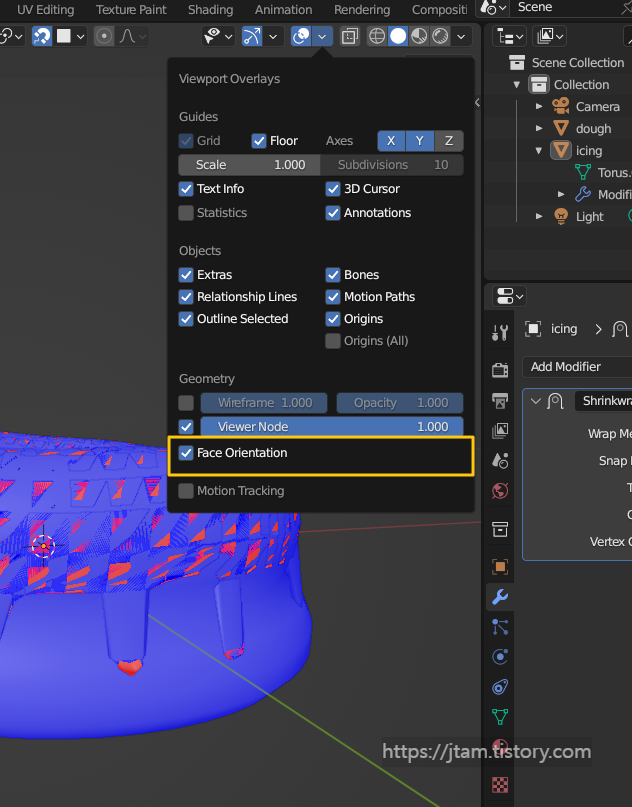

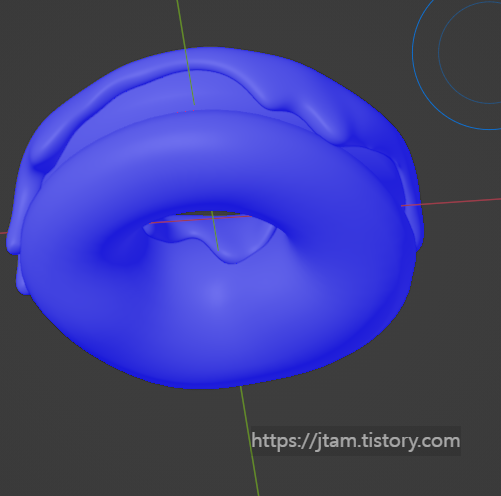

FACE OPRIENTATION 켜서 노말 맵 뒤집힘 확인.

파랑색 - 노말
빨간색 - 뒤집힘

자체 오류해결.. 정답인지 알 수 없음.

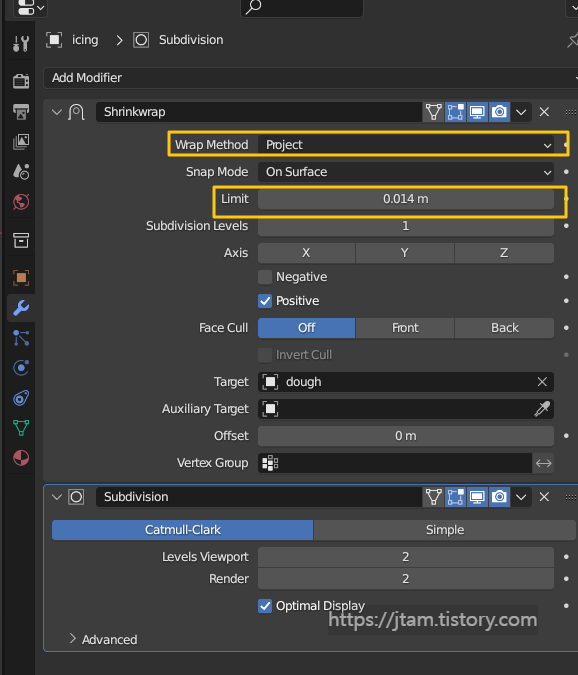

PROJECT MODE 에서 LIMIT값 조절..
후 아래에 섭디.

대충 해결?

<sculpting mode basic hot keys>

F drag; to change the size of the brush

shift F; strength

g; for grab

shift s; smooth

i; inflate (to make a bit bigger)

n for active tool > turn on stroke method> air brush

"such as as and things and such??"

inflate mode ; i 대표적인 예시

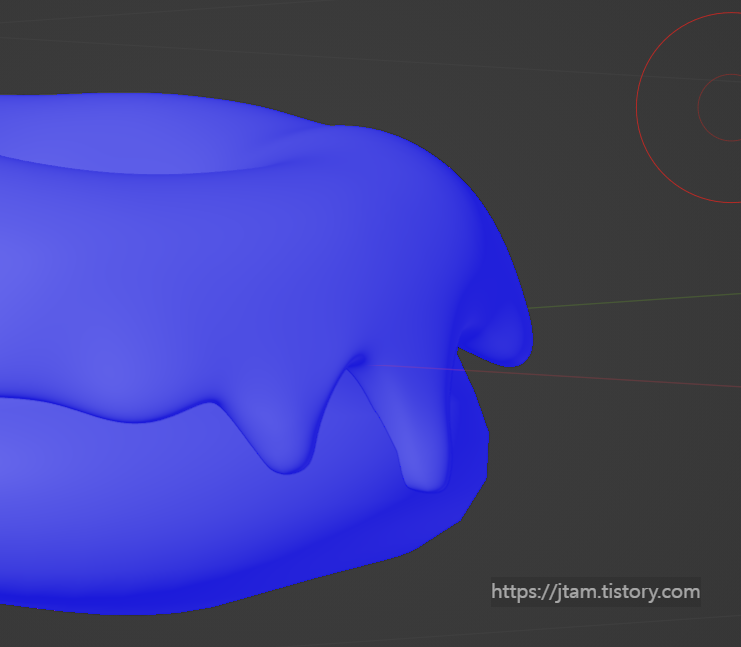

6. icing 작업 디테일의 경우 grab으로 전반적인 형태 잡아주고,
smooth로 부드럽게 해주고
inflate로 방울 디테일 넣어주는 것.

7. to move on to another object.
control tab > choose object mode and choose the obj.
and then ctrl tab to sculpting mode again.

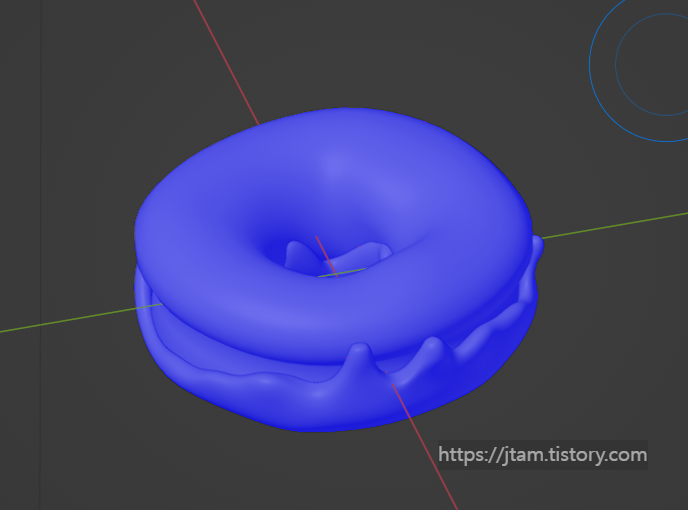

8. sculpt the bottom

아랫 면도 inflate로 형태잡고

"and don't do too much smooth, it will remove all the detail"

9. in the sculpting mood you can't do the shrink wrap
so pushing it with your hand in the sculpting mode manually is the best option!



from this to that!



10. DO THE DETAILS.

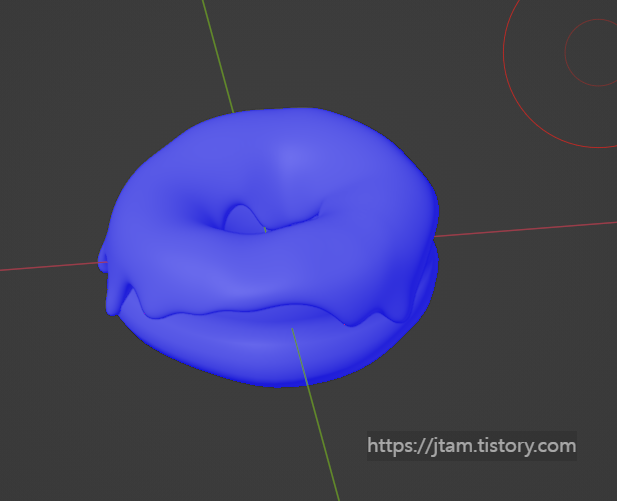

blender sculpting result!

SO THIS IS FOR TODAY!





my file :

221214_005_sculpting-donut.blend
14.52MB
